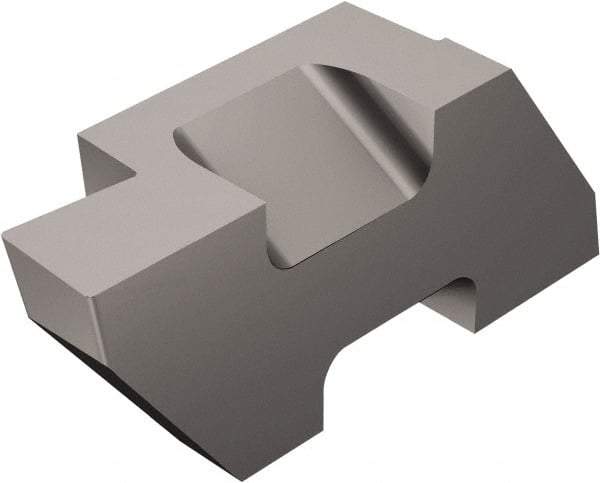

Sandvik Coromant - 4189TLG Grade H13A, 0.189" Cutting Width Carbide Grooving Insert - 1/4" Max Depth of Cut, Right Hand, 0.57mm Corner Radius, Uncoated
Item #: 54931753
Brand: Sandvik Coromant
Model #: 5753671
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLG |
| Insert Size | 4189 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 10 |
| Insert Seat Size | 4 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.57 |
| Corner Radius (Decimal Inch) | 0.0225 |
| Series | Top Lok |
| ISO Number | TLG4189RH13A |
| Manufacturers Catalog Number | 5753671 |
| Insert Thickness (Decimal Inch) | 0.4530 |
| Insert Thickness (mm) | 11.5062 |
