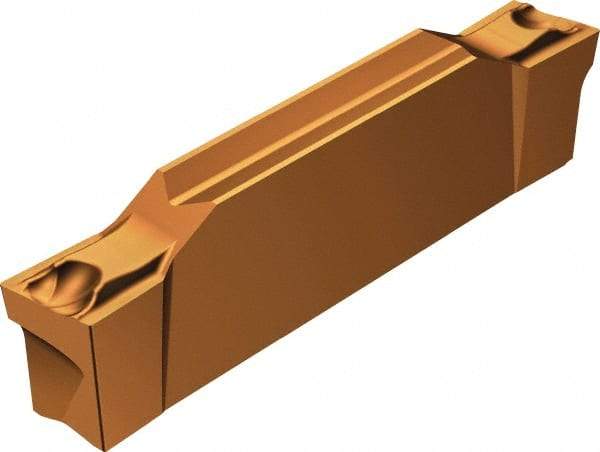

Sandvik Coromant - L123F2F CS 1125 Grade, 0.0984" Cutting Width, Carbide Cutoff Insert - 10° Left Hand Lead Angle, 0.0039" Cnr Rad, TiAlN Coated
Item #: 54931704
Brand: Sandvik Coromant
Model #: 5732513
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | L123F2 |
| Insert Size | F |
| Lead Angle Direction | Left Hand |
| Lead Angle | 10 |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Series | CoroCut 1-2 |
| Relief Angle | 5 |
| Chipbreaker | CS |
| Maximum Depth of Cut (mm) | 19.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.7638 |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting; Profiling |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Insert Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | F |
| Width Tolerance | ±0.0008 (Inch) |
| Manufacturers Catalog Number | 5732513 |
