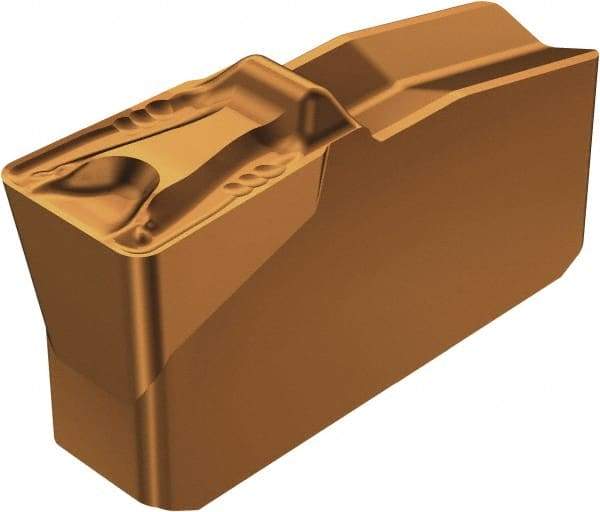

Sandvik Coromant - 50N151.2 5T Grade 1125, 5mm Cutting Width Carbide Grooving Insert - 2.3mm Max Depth of Cut, Neutral, 1/64" Corner Radius, TiAlN Finish
Item #: 54930862
Brand: Sandvik Coromant
Model #: 5737618
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 50 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 2.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0906 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | 50 |
| Chipbreaker | 5T |
| Multi-Use Tool | Yes |
| Multi-Use Application | Deep Parting; Recessing; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Coating Process | PVD |
| Series | T-Max Q-Cut |
| ISO Number | N151.2-5004-50-5T 1125 |
| Manufacturers Catalog Number | N151.2-5004-50-5T |
| Overall Width (mm) | 5.00 |
| Overall Width (Decimal Inch) | 0.1969 |
| Insert Thickness (Decimal Inch) | 0.3191 |
| Insert Thickness (mm) | 8.1100 |
