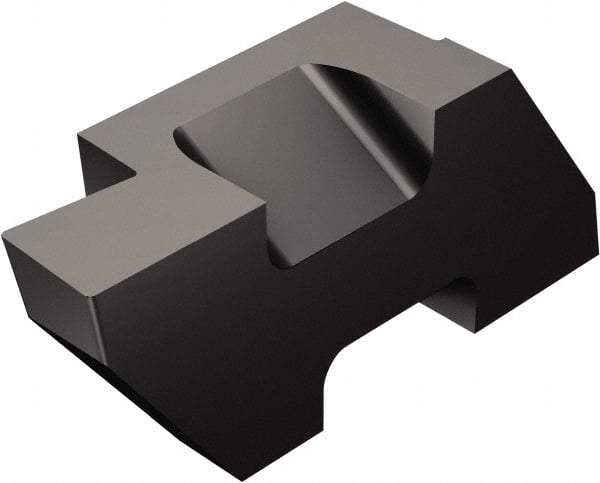

Sandvik Coromant - 3062TLG Grade 3020, 1/16" Cutting Width Carbide Grooving Insert - 3/32" Max Depth of Cut, Right Hand, 0.19mm Corner Radius, TiCN/Al2O3 Finish
Item #: 54930540
Brand: Sandvik Coromant
Model #: 5753616
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLG |
| Insert Size | 3062 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0620 |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | 3020 |
| Coating | TiCN/Al2O3 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 10 |
| Insert Seat Size | 3 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | MT-CVD |
| Series | Top Lok |
| ISO Number | TLG3062R3020 |
| Manufacturers Catalog Number | 5753616 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| Insert Thickness (mm) | 8.7376 |
