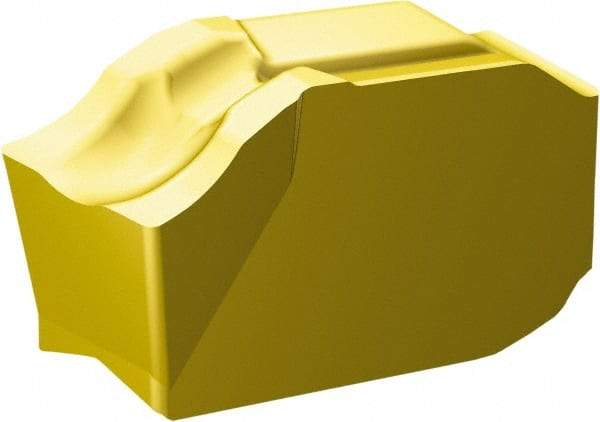

Sandvik Coromant - QDE CM 1135 Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - 5° Right Hand Lead Angle, 0.0079" Cnr Rad, TiCN/Al2O3/TiN Coated
Item #: 54930243
Brand: Sandvik Coromant
Model #: 6531926
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | QD |
| Insert Size | E |
| Lead Angle Direction | Right Hand |
| Lead Angle | 5 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | 1135 |
| Coating | TiCN/Al2O3/TiN |
| Series | CoroCut QD |
| Relief Angle | 7 |
| Chipbreaker | CM |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | E |
| Width Tolerance | ±0.001969 (Inch) |
| Manufacturers Catalog Number | 6531926 |
