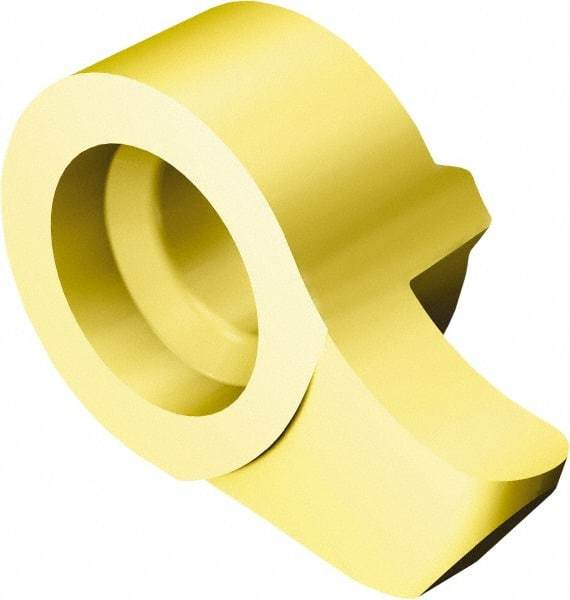

Sandvik Coromant - MB..R09, 1025 Grade Carbide Profiling Insert - TiAlN/TiN Finish, 2° Relief Angle, 3mm Thick, 1.5mm Corner Radius
Item #: 54930193
Brand: Sandvik Coromant
Model #: 5735846
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | MB..R |
| Insert Size | 09 |
| Manufacturer's Grade | 1025 |
| Width (mm) | 3.00 |
| Width (Decimal Inch) | 0.1181 |
| Thickness (mm) | 3.00 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Relief Angle | 2 |
| Coating | TiAlN/TiN |
| Length (Decimal Inch) | 0.2362 |
| Length (mm) | 6.00 |
| Coating Process | PVD |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | CoroCut MB |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
