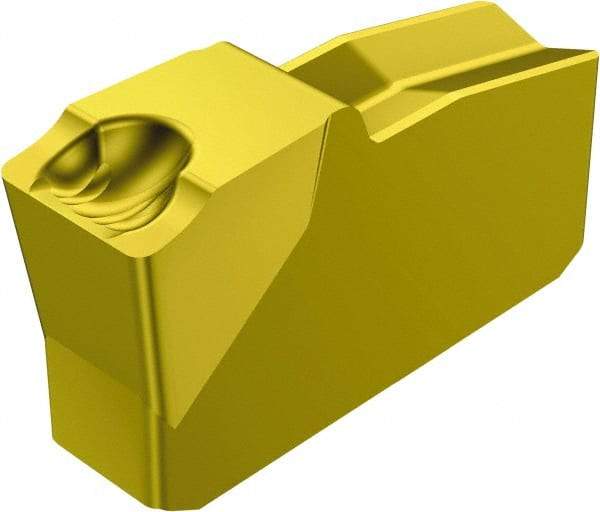

Sandvik Coromant - 80080N151.2 5G Grade 235, 8mm Cutting Width Carbide Grooving Insert - Neutral, 0.5mm Corner Radius, TiCN/TiN Finish
Item #: 54930185
Brand: Sandvik Coromant
Model #: 5737877
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 80080 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | 80 |
| Chipbreaker | 5G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| ISO Number | N1512800805G235 |
| Manufacturers Catalog Number | 5737877 |
| Insert Thickness (Decimal Inch) | 0.4063 |
| Insert Thickness (mm) | 10.3200 |
