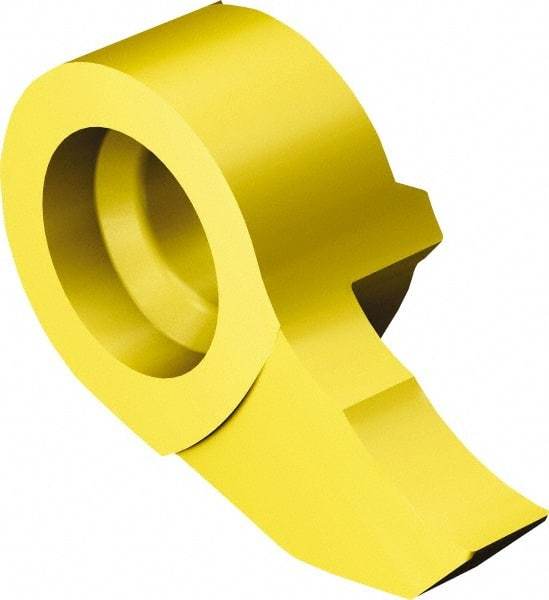

Sandvik Coromant - 07MB Grade 1025, 0.9mm Cutting Width Carbide Grooving Insert - 1.5mm Max Depth of Cut, Right Hand, TiAlN/TiN Finish
Item #: 54929856
Brand: Sandvik Coromant
Model #: 5735539
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 07 |
| Material | Carbide |
| Cutting Width (mm) | 0.90 |
| Cutting Width (Decimal Inch) | 0.0354 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 90 |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Overall Length (mm) | 4.60 |
| Overall Length (Decimal Inch) | 0.1811 |
| Series | CoroCut MB |
| ISO Number | MB07G0900010R1025 |
| Manufacturers Catalog Number | 5735539 |
