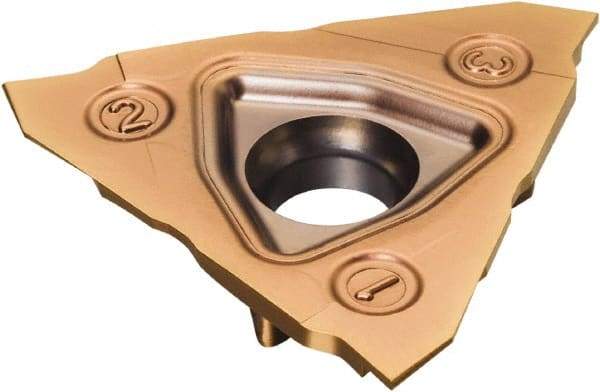

Sandvik Coromant - 0050N123 Grade 1125, Carbide Grooving Insert - 1.5mm Max Depth of Cut, Neutral, 0.25mm Corner Radius, TiAlN Finish
Item #: 54929658
Brand: Sandvik Coromant
Model #: 5737083
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 0050 |
| Material | Carbide |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 0.25 |
| Corner Radius (Decimal Inch) | 0.0098 |
| Coating Process | PVD |
| Series | CoroCut 3 |
| Manufacturers Catalog Number | 5737083 |
