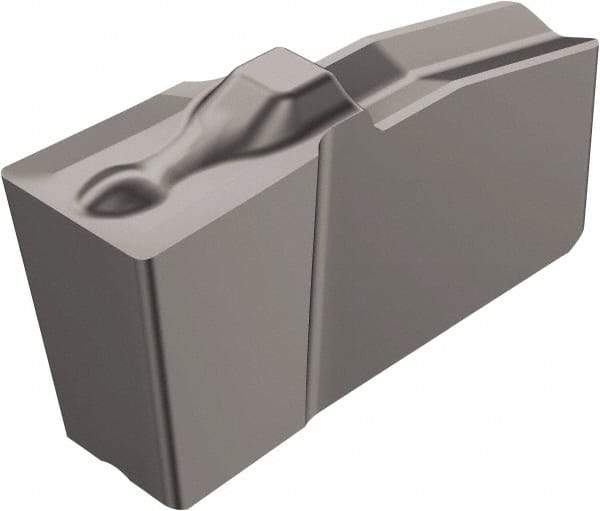

Sandvik Coromant - 14230N151.2 4G Grade H13A, 3.61mm Cutting Width Carbide Grooving Insert - Neutral, 0.32mm Corner Radius, Uncoated
Item #: 54928924
Brand: Sandvik Coromant
Model #: 5736779
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 14230 |
| Material | Carbide |
| Cutting Width (mm) | 3.61 |
| Cutting Width (Decimal Inch) | 0.1421 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | 30 |
| Chipbreaker | 4G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.32 |
| Corner Radius (Decimal Inch) | 0.0126 |
| Series | T-Max Q-Cut |
| ISO Number | N1512A142304GH13A |
| Manufacturers Catalog Number | 5736779 |
| Insert Thickness (Decimal Inch) | 0.2673 |
| Insert Thickness (mm) | 6.7900 |
