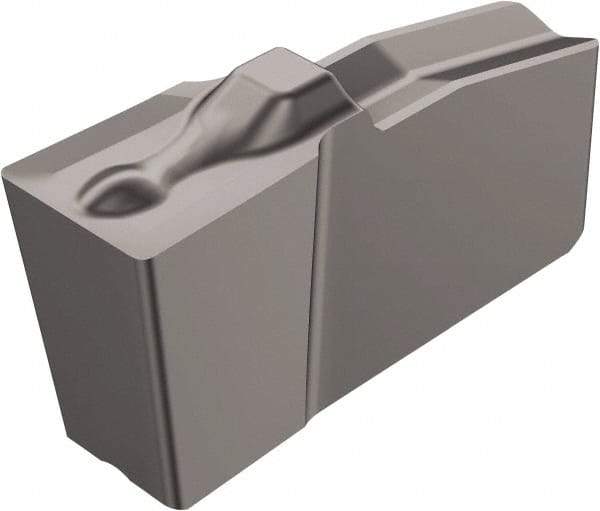

Sandvik Coromant - 50040N151.2 4G Grade 525, 5mm Cutting Width Carbide Grooving Insert - Neutral, 0.2mm Corner Radius, Uncoated
Item #: 54928031
Brand: Sandvik Coromant
Model #: 5737223
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 50040 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 525 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | 40 |
| Chipbreaker | 4G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Series | T-Max Q-Cut |
| ISO Number | N1512500404G525 |
| Manufacturers Catalog Number | 5737223 |
| Insert Thickness (Decimal Inch) | 0.3193 |
| Insert Thickness (mm) | 8.1100 |
