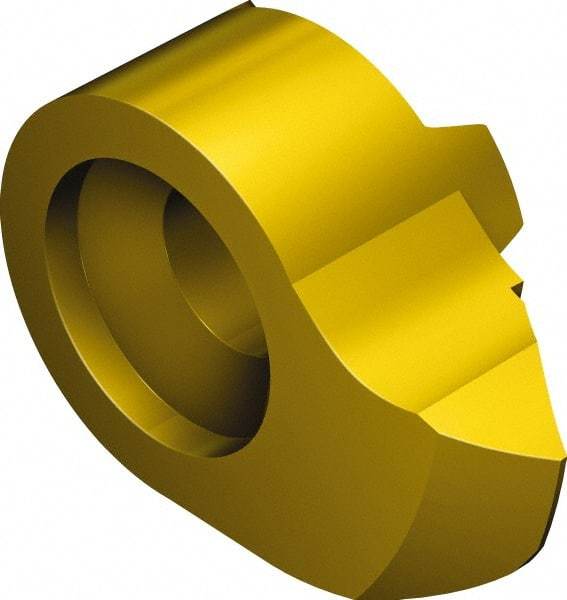

Sandvik Coromant - MB..T04507, 1025 Grade Carbide Profiling Insert - TiAlN/TiN Finish, 45° Incl Angle, 0.0787" Side Length, 0.2mm Corner Radius
Item #: 54927967
Brand: Sandvik Coromant
Model #: 5735956
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | MB..T045 |
| Insert Size | 07 |
| Manufacturer's Grade | 1025 |
| Insert Height (mm) | 0.00 |
| Insert Height (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Relief Angle | 0 |
| Coating | TiAlN/TiN |
| Insert Length (mm) | 4.00 |
| Insert Length (Decimal Inch) | 0.1575 |
| Length (Decimal Inch) | 0.1890 |
| Length (mm) | 4.80 |
| Rake Angle | 0 |
| Coating Process | PVD |
| Side Length (Decimal Inch) | 0.0787 |
| Side Length (mm) | 2.00 |
| Included Angle | 45 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | CoroCut MB |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Insert Holding Method | Screw |
