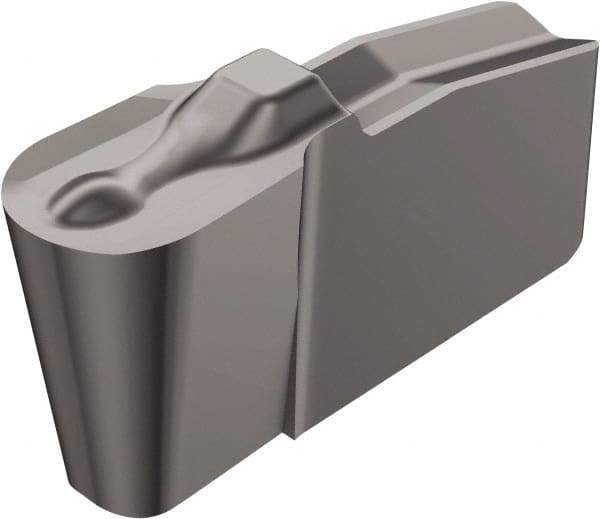

Sandvik Coromant - 20N151.2 4U Grade 525, 2mm Cutting Width Carbide Grooving Insert - 1mm Max Depth of Cut, Neutral, 1mm Corner Radius, Uncoated
Item #: 54927637
Brand: Sandvik Coromant
Model #: 5737176
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 20 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Manufacturer's Grade | 525 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | 20 |
| Chipbreaker | 4U |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Series | T-Max Q-Cut |
| ISO Number | N1512200204U525 |
| Manufacturers Catalog Number | 5737176 |
| Insert Thickness (Decimal Inch) | 0.2213 |
| Insert Thickness (mm) | 5.6200 |
