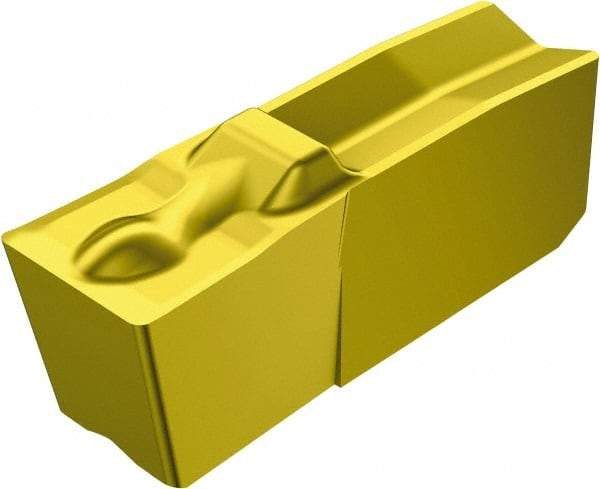

Sandvik Coromant - 20020N151.3 4G Grade 235, 2mm Cutting Width Carbide Grooving Insert - Neutral, 0.2mm Corner Radius, TiCN/TiN Finish
Item #: 54927074
Brand: Sandvik Coromant
Model #: 5737355
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 20020 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 11 |
| Insert Seat Size | 20 |
| Chipbreaker | 4G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| ISO Number | N1513200204G235 |
| Manufacturers Catalog Number | 5737355 |
| Insert Thickness (Decimal Inch) | 0.1882 |
| Insert Thickness (mm) | 4.7800 |
