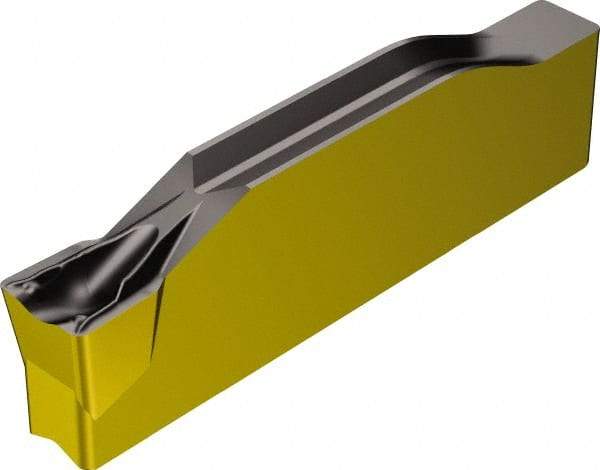

Sandvik Coromant - 0300N123G1 TF Grade 4325, 3mm Cutting Width Carbide Grooving Insert - 1.8mm Max Depth of Cut, Neutral, TiCN/Al2O3/TiN Finish
Item #: 54927017
Brand: Sandvik Coromant
Model #: 6532120
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123G1 |
| Insert Size | 0300 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 1.80 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | TF |
| Coating Process | CVD |
| Series | CoroCut 1-2 |
| ISO Number | N123G103000003TF4325 |
| Manufacturers Catalog Number | 6532120 |
| Insert Thickness (mm) | 4.3000 |
