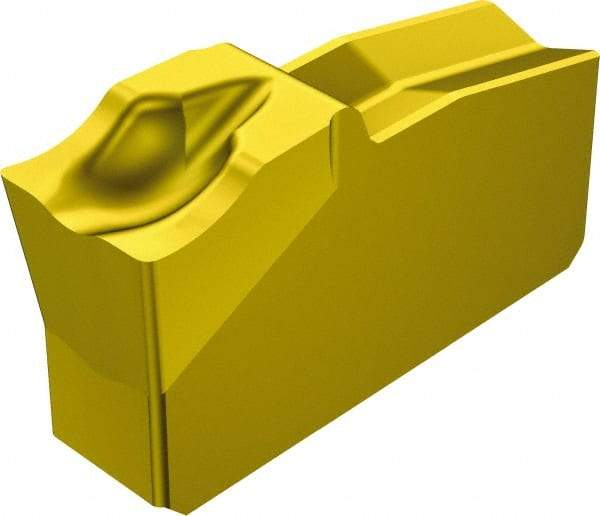

Sandvik Coromant - N151.250 5E 1005 Grade, 0.1969" Cutting Width, Carbide Cutoff Insert - 0° Lead Angle, 0.0079" Cnr Rad, TiAlN/TiN Coated
Item #: 54926761
Brand: Sandvik Coromant
Model #: 5737203
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | N151.2 |
| Insert Size | 50 |
| Lead Angle | 0 |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 1005 |
| Coating | TiAlN/TiN |
| Series | T-Max Q-Cut |
| Relief Angle | 7 |
| Chipbreaker | 5E |
| Multi-Use Application | Parting |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Seat Size | 50 |
| Manufacturers Catalog Number | 5737203 |
