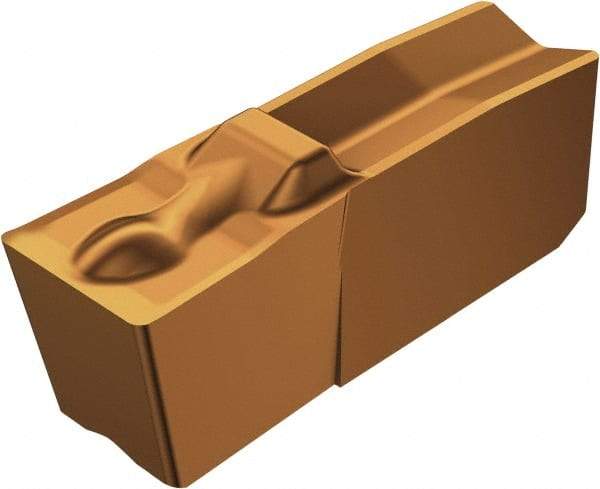

Sandvik Coromant - 18540N151.3 4G Grade 1125, 4.7mm Cutting Width Carbide Grooving Insert - Neutral, 0.56mm Corner Radius, TiAlN Finish
Item #: 54926647
Brand: Sandvik Coromant
Model #: 5736889
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 18540 |
| Material | Carbide |
| Cutting Width (mm) | 4.70 |
| Cutting Width (Decimal Inch) | 0.1850 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 11 |
| Insert Seat Size | 40 |
| Chipbreaker | 4G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.56 |
| Corner Radius (Decimal Inch) | 0.0220 |
| Coating Process | PVD |
| Series | T-Max Q-Cut |
| ISO Number | N1513A185404G1125 |
| Manufacturers Catalog Number | 5736889 |
| Insert Thickness (Decimal Inch) | 0.2406 |
| Insert Thickness (mm) | 6.1100 |
