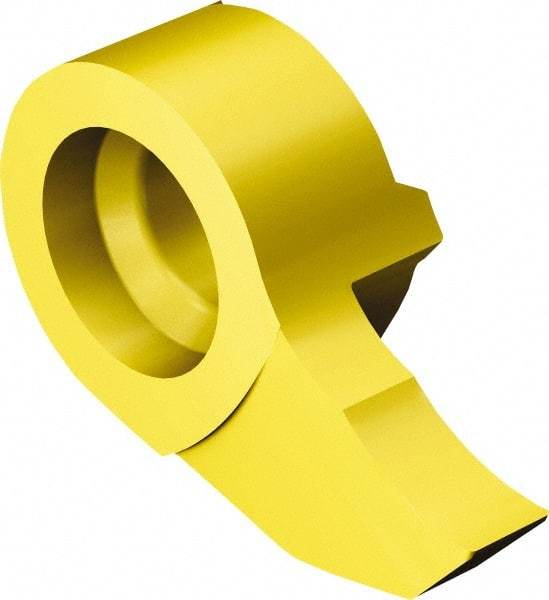

Sandvik Coromant - 11MB Grade 1025, 4mm Cutting Width Carbide Grooving Insert - 8mm Max Depth of Cut, Left Hand, 0.2mm Corner Radius, TiAlN/TiN Finish
Item #: 54926589
Brand: Sandvik Coromant
Model #: 6350733
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 11 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 90 |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | PVD |
| Overall Length (mm) | 6.40 |
| Overall Length (Decimal Inch) | 0.2520 |
| Series | CoroCut MB |
| ISO Number | MB11G4000220L1025 |
| Manufacturers Catalog Number | 6350733 |
