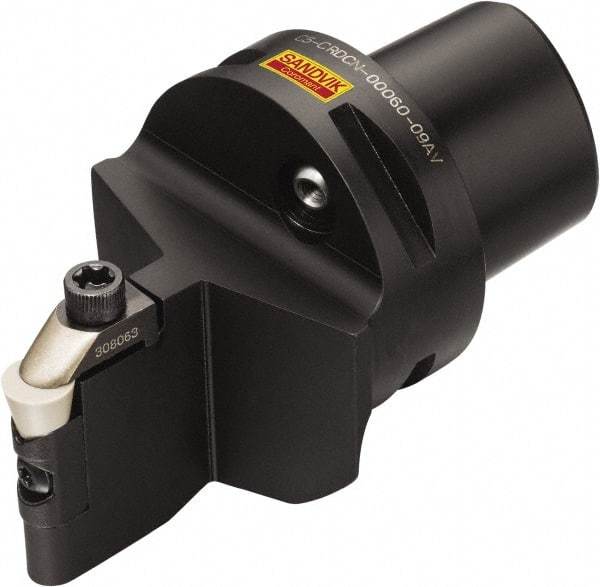

Sandvik Coromant - Neutral Cut, Size C5, RCGX 35 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 4.76mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series T-Max
Item #: 54914817
Brand: Sandvik Coromant
Model #: 5728495
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | RCGX 35 |
| Center to Cutting Edge (mm) | 4.76 |
| Center to Cutting Edge (Decimal Inch) | 0.1874 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Center to Cutting Height (mm) | 29.00 |
| Center to Cutting Height (Decimal Inch) | 1.1417 |
| Complete Insert Compatibility | RCGX 09 07 00 |
