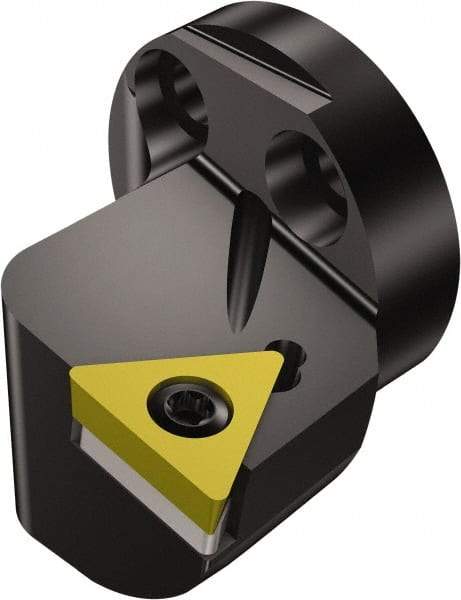

Sandvik Coromant - Right Hand, 16 TCMT 1.8(1.5)1 Modular Turning and Profiling Cutting Unit Head - Screw and Clamp Holding Method, 0.7874 Inch Hole Diameter, Through Coolant
Item #: 54914502
Brand: Sandvik Coromant
Model #: 5764416
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 16 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 20.00 |
| Head Length/Projection (Decimal Inch) | 0.7874 |
| Insert Style | TCMT 1.8(1.5)1 |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Complete Insert Compatibility | TCMT 09 02 04 |
