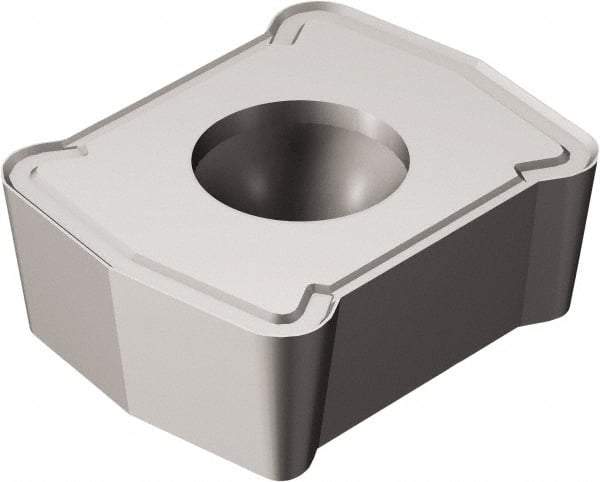

Sandvik Coromant - LCMX040308 53 Grade H13A Carbide Indexable Drill Insert - Uncoated, Square
Item #: 54897079
Brand: Sandvik Coromant
Model #: 5733640
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | LCMX |
| Insert Size | 040308 |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Square |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Relief Angle | 7 |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Chipbreaker | 53 |
