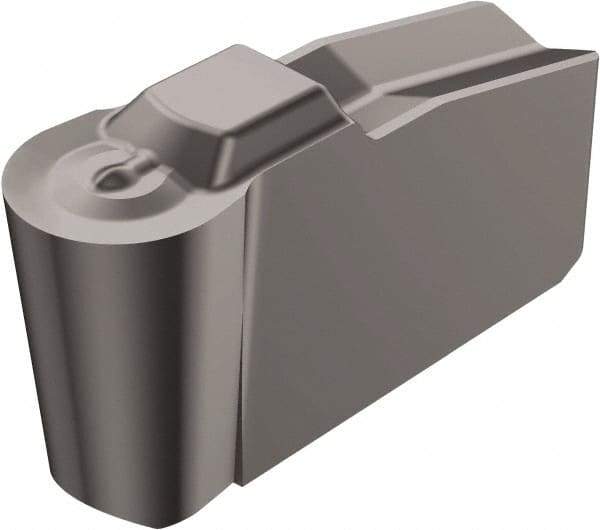

Sandvik Coromant - 60N151.2-4P Grade H13A, Carbide Grooving Insert - 3.6mm Max Depth of Cut, Neutral, 4mm Corner Radius, Uncoated
Item #: 54894530
Brand: Sandvik Coromant
Model #: 5737815
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2-4P |
| Insert Size | 60 |
| Material | Carbide |
| Maximum Depth of Cut (mm) | 3.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1417 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Series | T-Max Q-Cut |
| Manufacturers Catalog Number | 5737815 |
