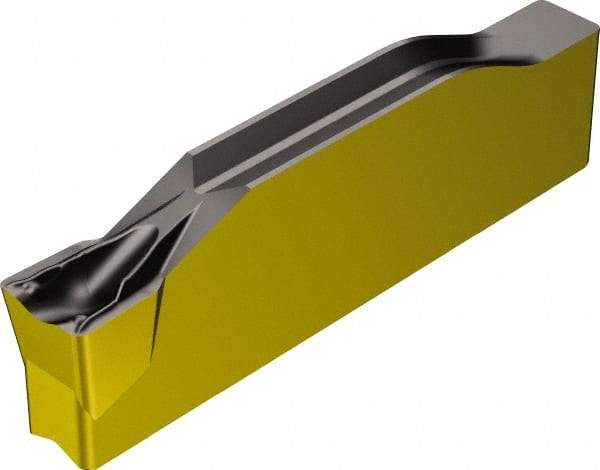

Sandvik Coromant - H1N123x1 TF Grade 4325, 4mm Cutting Width Carbide Grooving Insert - 2.2mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 54748785
Brand: Sandvik Coromant
Model #: 6532122
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123x1 |
| Insert Size | H1 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Insert Seat Size | H |
| Chipbreaker | TF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Grooving |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | MT-CVD |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | N123H1-0400-0004-TF 4325 |
| Manufacturers Catalog Number | N123H1-0400-0004-TF 4325 |
| Overall Width (mm) | 4.35 |
| Overall Width (Decimal Inch) | 0.1713 |
| Insert Thickness (Decimal Inch) | 0.1713 |
