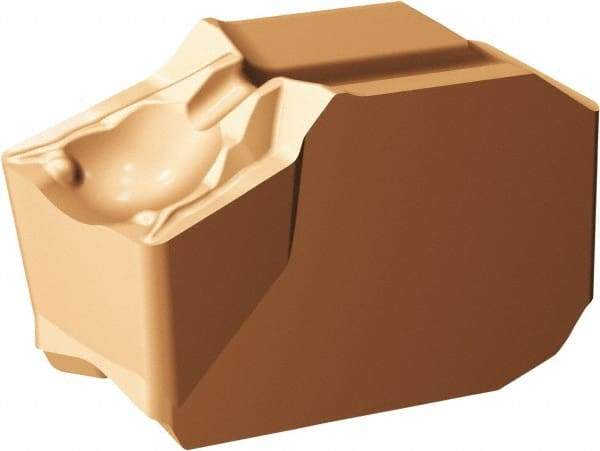

Sandvik Coromant - GQD TF Grade 1125, 3mm Cutting Width Carbide Grooving Insert - 2.1mm Max Depth of Cut, Neutral, 0.3mm Corner Radius, TiCrAlN/TiAlN Finish
Item #: 54747001
Brand: Sandvik Coromant
Model #: 6427395
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD |
| Insert Size | G |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 2.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0827 |
| Manufacturer's Grade | 1125 |
| Coating | TiCrAlN/TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Seat Size | G |
| Chipbreaker | TF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Grooving |
| Corner Radius (mm) | 0.3 |
| Corner Radius (Decimal Inch) | 0.012 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | QD-NG-0300-0003-TF 1125 |
| Manufacturers Catalog Number | QD-NG-0300-0003-TF 1125 |
| Overall Width (mm) | 3.10 |
| Overall Width (Decimal Inch) | 0.1220 |
| Insert Thickness (Decimal Inch) | 0.1220 |
