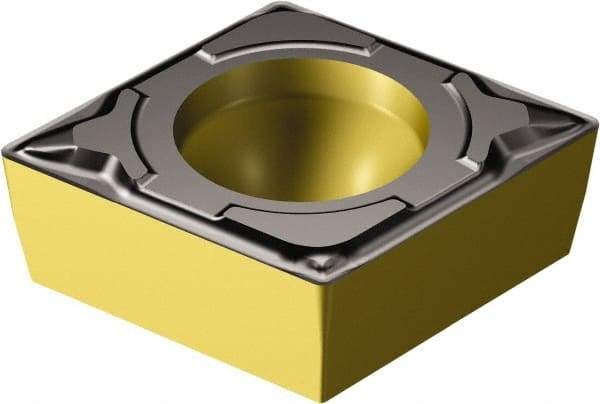

Sandvik Coromant - CCMT431 PF Grade 4315 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Parallelogram, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 54745989
Brand: Sandvik Coromant
Model #: 6612374
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 431 |
| Material | Carbide |
| Length (mm) | 12.50 |
| Length (Decimal Inch) | 0.4920 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 4315 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | PF |
| Insert Length (Decimal Inch) | 0.4920 |
| OverallLength (mm) | 12.90 |
| Overall Length (Decimal Inch) | 0.5077 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.1875 |
| ISO Number | CCMT 12 04 04-PF 4315 |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | CCMT 12 04 04-PF 4315 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Insert Holding Method | Screw |
| Cutting Width (mm) | 12.50 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Parallelogram |
