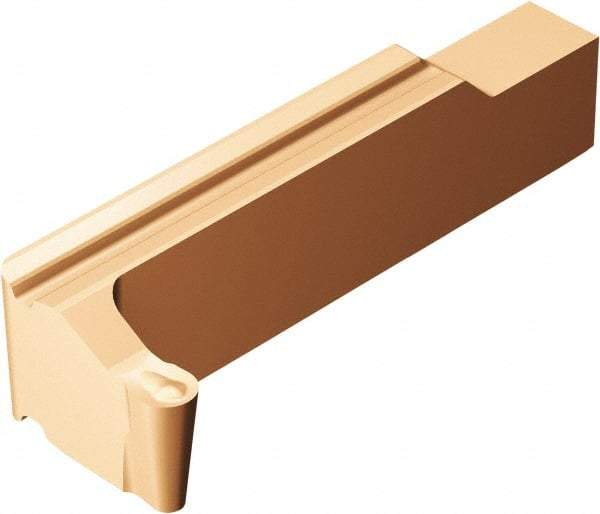

Sandvik Coromant - 0300R123 Grade 1115, 3mm Cutting Width Carbide Grooving Insert - 5mm Max Depth of Cut, Right Hand, 1.5mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 54709100
Brand: Sandvik Coromant
Model #: 6285758
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R123 |
| Insert Size | 0300 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Coating Process | PVD |
| Overall Length (mm) | 24.70 |
| Overall Length (Decimal Inch) | 0.9724 |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 6285758 |
