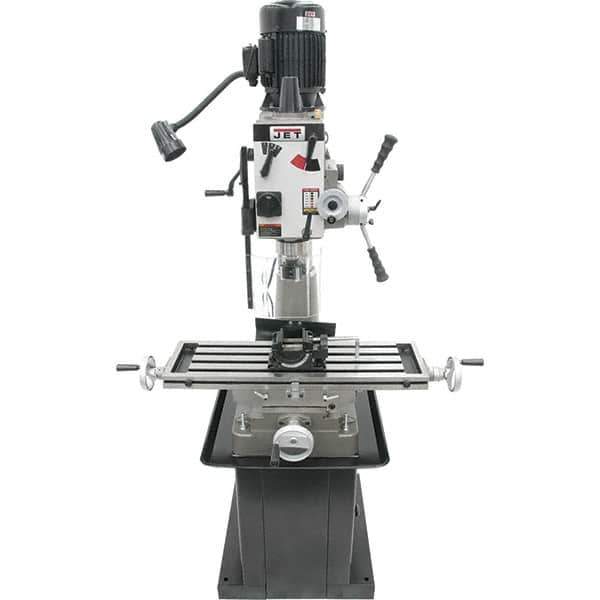

Jet - 1 Phase, 20-1/2" Swing, Geared Head Mill Drill Combination - 32-1/4" Table Length x 9-1/2" Table Width, 20-1/2" Longitudinal Travel, 8-1/4" Cross Travel, 6 Spindle Speeds, 1.5 hp, 115/230 Volts
Item #: 54674551
Brand: Jet
Model #: 351146
Exact Tooling IR#: 04
Features and Benefits
Geared head drive systems are similar to step pulleys, but are driven by a geared transmission. They offer rapid speed changes by turning a hand dial. They feature three to four fixed speeds
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors. Machine phase would commonly match the type of electrical current used in the facility.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Geared Head |
| Swing Distance (Inch) | 20-1/2 |
| Phase | 1 |
| Table Length (Inch) | 32-1/4 |
| Table Width (Inch) | 9-1/2 |
| Longitudinal Travel (Inch) | 20-1/2 |
| Cross Travel (Inch) | 8-1/4 |
| Number of Spindle Speeds | 6 |
| Minimum Spindle Speed (RPM) | 65.00 |
| Maximum Spindle Speed (RPM) | 1550.00 |
| Spindle Travel Length (mm) | 130.00 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Machine Type | Mill Drill Combination |
| Power Down Feed | Yes |
| Spindle Taper Size | R8 |
| Drilling Capacity in Steel (Inch) | 1-1/4 |
| Voltage Tolerance | 115/230 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/2 |
| Quill Diameter (Inch) | 3 |
| Maximum Spindle to Table Distance (Inch) | 15-3/4 |
| Number of T-Slots | 4 |
| T-Slot Size (Inch) | 5/8 |
| Head Swivel (Degrees) | 90.00 |
| Horsepower (HP) | 1.50 |
| Voltage | 115/230 |
| Overall Length (Inch) | 28 |
| Overall Height (Inch) | 42-1/2 |
| Overall Depth (Inch) | 39-1/4 |
| Includes | Spindle Guard; Work Lamp; Power Down Feed; Newall DP500 DRO |
