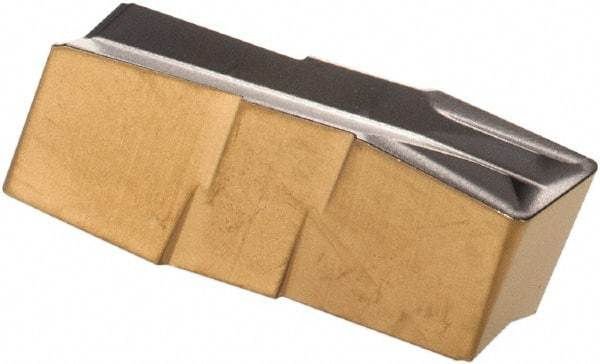

Iscar - 400E040GIF Grade IC808, 3.99mm Cutting Width Carbide Grooving Insert - 13mm Max Depth of Cut, Neutral, 0.41mm Corner Radius, TiN/TiAlN Finish
Item #: 54610647
Brand: Iscar
Model #: 6404242
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIF |
| Insert Size | 400E040 |
| Material | Carbide |
| Cutting Width (mm) | 3.99 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Grooving; Turning |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating Process | PVD |
| Overall Length (mm) | 15.29 |
| Overall Length (Decimal Inch) | 0.6020 |
| Series | Cut Grip |
| ISO Number | GIF 4.00E-0.40 |
| Manufacturers Catalog Number | GIF 4.00E-0.40 |
