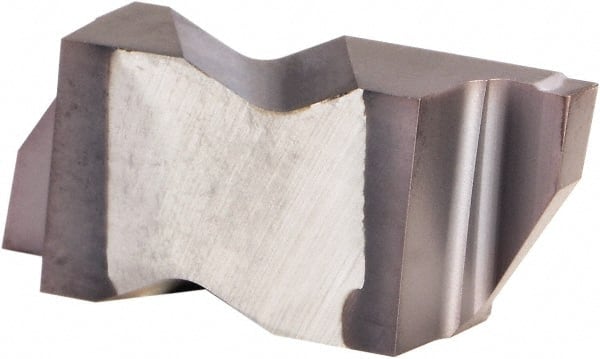

Kennametal - NG3072RK KCU25 Carbide Grooving Insert
Item #: 54550223
Brand: Kennametal
Model #: 4109785
Product Specifications
| Insert Style | NG |
| Insert Size | 3072 |
| Material | Carbide |
| Cutting Width (mm) | 1.83 |
| Cutting Width (Decimal Inch) | 0.0720 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0941 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Insert Seat Size | 3 |
| Chipbreaker | K |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Series | Top Notch |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch) | 0.1960 |
| Included Angle | 55 |
| Series Number | Top Notch |
| Insert Holding Method | Clamp |
| Corner Radius (Inch) | 0.0075 |
