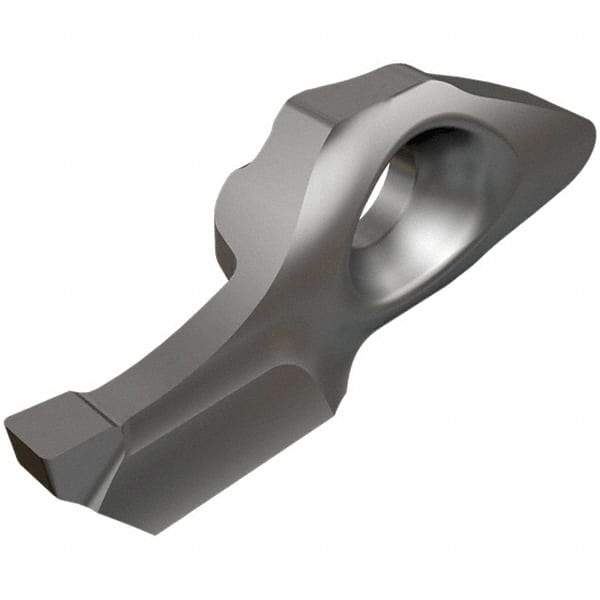

Iscar - 8-1.50-0.20MEF Grade IC908, 1.5mm Cutting Width Carbide Grooving Insert - 5.5mm Max Depth of Cut, Left Hand, 0.2mm Corner Radius, TiAlN Finish
Item #: 54518220
Brand: Iscar
Model #: 6410659
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MEF |
| Insert Size | 8-1.50-0.20 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0590 |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (mm) | 17.40 |
| Overall Length (Decimal Inch) | 0.6850 |
| Series | MinCut |
| ISO Number | MEFL 8-1.50-0.20 IC908 |
| Manufacturers Catalog Number | 6410659 |
| Overall Width (mm) | 2.60 |
| Overall Width (Decimal Inch) | 0.1020 |
| Insert Thickness (Decimal Inch) | 0.2600 |
| Insert Thickness (mm) | 6.6000 |
