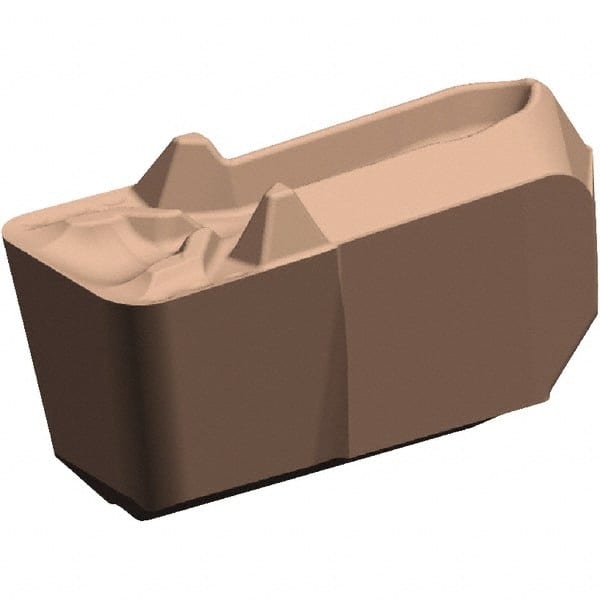

Kennametal - EG0800M08P08GUP K313 Carbide Grooving Insert
Item #: 54463526
Brand: Kennametal
Model #: 5988839
Product Specifications
| Insert Style | EG-P |
| Insert Size | 8 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1830 |
| Manufacturer's Grade | K313 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.40 |
| Cutting Height (Decimal Inch) | 0.2510 |
| Insert Seat Size | 8 |
| Chipbreaker | GUP |
| Multi-Use Application | Grooving |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.8000 |
| Maximum Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | Uncoated |
| Overall Length (mm) | 17.40 |
| Overall Length (Decimal Inch) | 0.6850 |
| Series | Beyond Evolution |
| Rake Angle | 27 |
| Rake | Positive |
| Overall Width (mm) | 8.00 |
| Overall Width (Decimal Inch) | 0.3150 |
| Insert Thickness (Decimal Inch) | 0.2510 |
| Series Number | Beyond Evolution |
| Thickness (Decimal Inch) | 0.2510 |
| Corner Radius (Inch) | 0.0310 |
