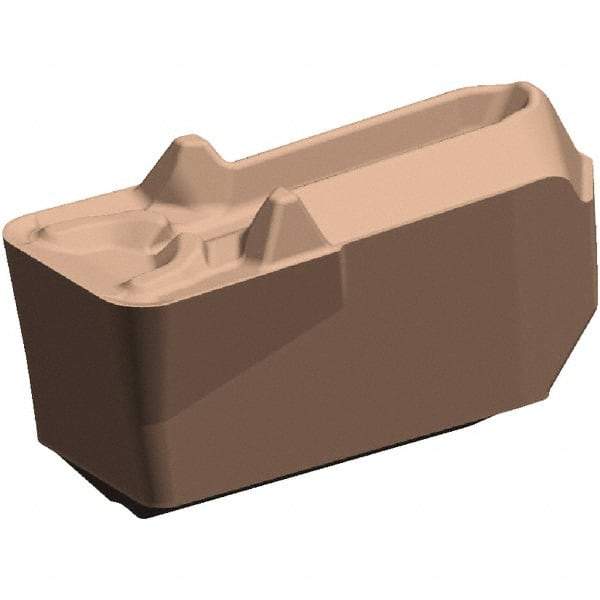

Kennametal - 8EG-U GUN Grade KCU10, 8.05mm Cutting Width Carbide Grooving Insert - 4.5mm Max Depth of Cut, Neutral, 1.19mm Corner Radius, AlTiN Finish
Item #: 54448469
Brand: Kennametal
Model #: 6012911
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG-U |
| Insert Size | 8 |
| Material | Carbide |
| Cutting Width (mm) | 8.05 |
| Cutting Width (Decimal Inch) | 0.3170 |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.39 |
| Cutting Height (Decimal Inch) | 0.2520 |
| Lead Angle | 0 |
| Insert Seat Size | 8 |
| Chipbreaker | GUN |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Minimum Corner Radius (Decimal Inch) | 0.0470 |
| Maximum Corner Radius (Decimal Inch) | 1.1900 |
| Corner Radius (mm) | 1.19 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Overall Length (mm) | 17.46 |
| Overall Length (Decimal Inch) | 0.6870 |
| Series | Beyond Evolution |
| Rake Angle | 13 |
| Rake | Positive |
| Overall Width (mm) | 8.05 |
| Overall Width (Decimal Inch) | 0.3170 |
| Insert Thickness (Decimal Inch) | 0.2520 |
