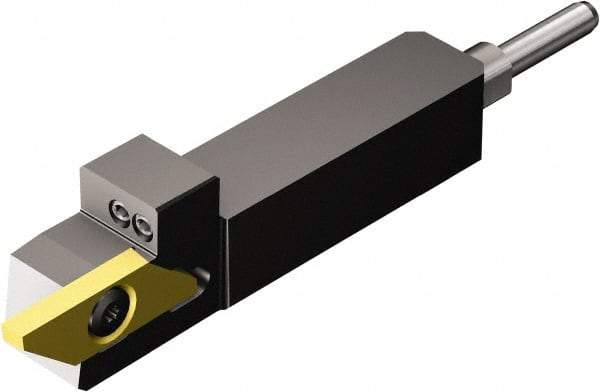

Sandvik Coromant - External Thread, 0.3346" Max Depth of Cut, 70mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3 Seat Size, 5/8" Shank Height x 5/8" Shank Width, MAxR 3.. Insert Style, QS-SMALR/L..HP Toolholder Style, Series CoroCut XS
Item #: 54431200
Brand: Sandvik Coromant
Model #: 6010218
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 8.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 70.00 |
| Series | CoroCut XS |
| Toolholder Style | QS-SMALR/L..HP |
| Insert Compatibility | MAxR 3.. |
| Shank Height (mm) | 15.88 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Head Height (mm) | 15.88 |
| Head Height (Decimal Inch) | 0.6250 |
| Head Length (mm) | 15.88 |
| Head Length (Decimal Inch) | 0.6250 |
| Shank Length (Decimal Inch) | 1.6536 |
| Shank Length (mm) | 42.00 |
| Manufacturers Catalog Number | QS-SMALR103XHP |
| Insert Seat Size | 3.0 |
