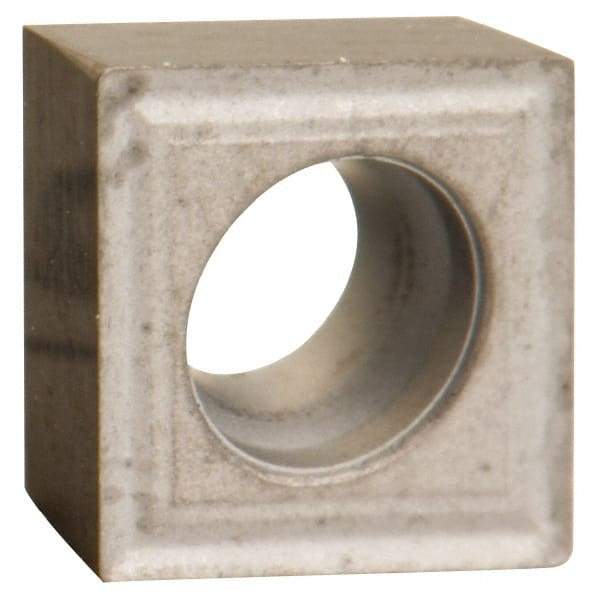

Seco - 12 TPI, Internal Thread, UN Standard, 17NMS CP500 Grade Thread Mill Insert - Carbide, TiN Coating
Item #: 54066600
Brand: Seco
Model #: 17513
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | 17NMS |
| Thread Type | Internal |
| Thread Standard | UN |
| Threads Per Inch | 12 |
| Length (mm) | 17.00 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Material | Carbide |
| Coating | TiN |
| Thickness (mm) | 3.00 |
| Width (mm) | 10.00 |
| Conical | No |
