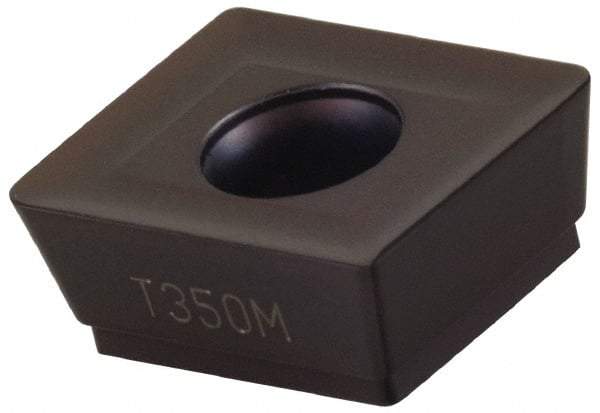

Seco - ACET150630 M14 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 1/4" Thick, 0.118" Corner Radius
Item #: 53994265
Brand: Seco
Model #: 23911
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ACET |
| Insert Size | 150630 |
| Material | Carbide |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.5000 |
| Length (Decimal Inch) | 0.5910 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.1180 |
| Relief Angle | 7.000 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | M14 |
| ISO Number | ACET150630TR-M14 |
