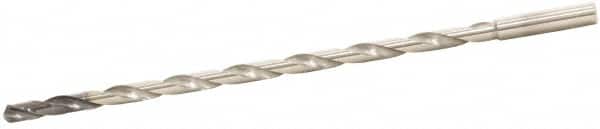

Extra Length Drill Bit: 0.1378″ Dia, 140 °, Solid Carbide DEX Finish, 3.4646″ Flute Length, Straight-Cylindrical Shank, Series MDW-XHV
Item #: 53959649
Brand: Sumitomo
Model #: U101140
Product Specifications
| Drill Bit Size (mm) | 3.50 |
| Overall Length (mm) | 139.00 |
| Flute Length (mm) | 88.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | DEX |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Series | MDW-XHV |
| Tool Application | Deep Hole Drilling |
| Drill Bit Diameter Tolerance | -0.00080 to -0.00145 in |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Primary Workpiece Material | Ductile Iron; Hardened Steel |
| Drill Bit Size (Decimal Inch) | 0.1378 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Flute Length (Decimal Inch) | 3.4646 |
| Flute By Diameter Ratio | 20xD |
| Maximum Drilling Depth (mm) | 91.00 |
