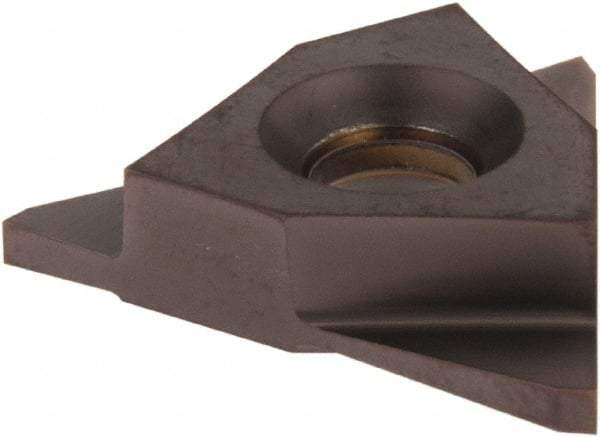

Tool-Flo - 43TNMC Grade AC50, 1.57mm Cutting Width Carbide Grooving Insert - 0.15" Max Depth of Cut, Right Hand, AlTiN Finish
Item #: 53817896
Brand: Tool-Flo
Model #: R4106200AC50C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMC |
| Insert Size | 43 |
| Material | Carbide |
| Cutting Width (mm) | 1.57 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Manufacturer's Grade | AC50 |
| Coating | AlTiN |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.0000 |
| Lead Angle | 0 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0000 |
| Maximum Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (Inch) | 0 |
| Coating Process | PVD |
| Series | On-Edge |
| Overall Width (Decimal Inch) | 0.1270 |
| Insert Thickness (Decimal Inch) | 0.1870 |
