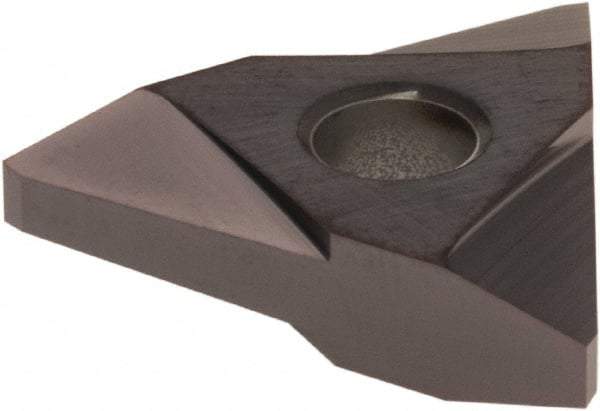

Tool-Flo - TNMA43 Acme Grade AC3R Internal/External On Edge Threading Insert - AlTiN Finish, 12" External TPI, 12" Internal TPI, 1/2" Inscribed Circle, Neutral Cut
Item #: 53816997
Brand: Tool-Flo
Model #: 0239120AC3R
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMA |
| Insert Size | 43 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Thread Standard | Acme |
| Manufacturer's Grade | AC3R |
| Internal Threads Per Inch | 12 |
| External Threads Per Inch | 12 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Rake | Neutral |
| Material | Carbide |
| Coating | AlTiN |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Coating Process | PVD |
| Width of Cutting Tip (Decimal Inch) | 0.0283 |
| Corner Radius (Decimal Inch) | 0.0000 |
