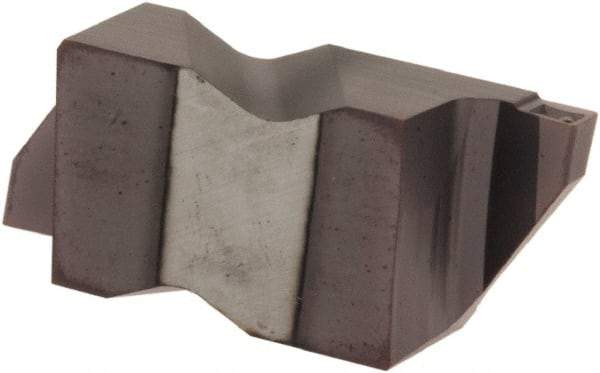

Tool-Flo - 3031FLG CB Grade AC50, 0.031" Cutting Width Carbide Grooving Insert - 0.05" Max Depth of Cut, Right Hand, .002 to .005" Corner Radius, AlTiN Finish
Item #: 53816740
Brand: Tool-Flo
Model #: 563631PRAC50C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLG |
| Insert Size | 3031 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0310 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | AC50 |
| Coating | AlTiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 0 |
| Insert Seat Size | 3 |
| Chipbreaker | CB |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0020 |
| Maximum Corner Radius (Decimal Inch) | 0.0050 |
| Corner Radius (Decimal Inch) | .002-.005 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Rake | Neutral |
| Manufacturers Catalog Number | FLG-3031R-CB |
| Insert Thickness (Decimal Inch) | 0.1950 |
