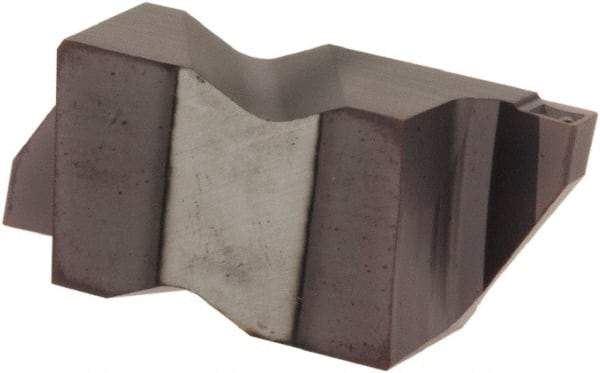

Tool-Flo - 3189FLG Grade AC3, 0.189" Cutting Width Carbide Grooving Insert - 0.18" Max Depth of Cut, Left Hand, 0.02 to 0.025" Corner Radius, AlTiN Finish
Item #: 53816419
Brand: Tool-Flo
Model #: 563889LAC3R
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLG |
| Insert Size | 3189 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | AC3 |
| Coating | AlTiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 0 |
| Insert Seat Size | 3 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0200 |
| Maximum Corner Radius (Decimal Inch) | 0.0250 |
| Corner Radius (Decimal Inch) | 0.020-0.025 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Rake | Neutral |
| Manufacturers Catalog Number | FLG-3189L |
| Insert Thickness (Decimal Inch) | 0.1950 |
