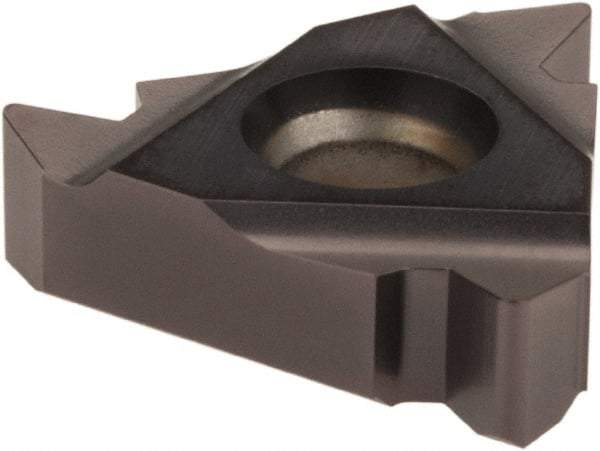

Tool-Flo - 16NR Internal Right Hand 20 UN Laydown Threading Insert - Grade AC22, AlTiN Coated Carbide
Item #: 53815312
Brand: Tool-Flo
Model #: 5026620AC22R
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | UN |
| Material Grade | Submicron |
| Manufacturer's Grade | AC22 |
| Threads Per Inch | 20 |
| Pitch (mm) | 1.00 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1450 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Coating | AlTiN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0030 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.040 |
| Chipbreaker | A2 |
