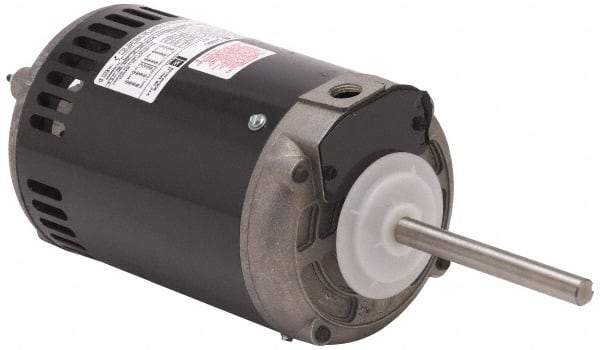

US Motors - 3/4 hp, OPAO Enclosure, Auto Thermal Protection, 1,075 RPM, 208-230/460 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Hub/Stud Mount, 1 Speed, Ball Bearings, 4.6-4.1/1.7 Full Load Amps, B Class Insulation, CCW Lead End Rev - USA Tool & Supply

US Motors - 3/4 hp, OPAO Enclosure, Auto Thermal Protection, 1,075 RPM, 208-230/460 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Hub/Stud Mount, 1 Speed, Ball Bearings, 4.6-4.1/1.7 Full Load Amps, B Class Insulation, CCW Lead End Rev


Item #: 53657540
Brand: US Motors
Model #: 8430
Exact Tooling IR#: 04

Product Specifications
Type of Enclosure OPAO
Horsepower 3/4
Thermal Protection Rating Auto
Name Plate RPMs 1075
Voltage 208-230/460
Frequency Hz 60
Frame Size 56
Mount Type Hub/Stud
Number of Speeds 1
Bearing Type Ball
Full Load Amperage 4.6-4.1/1.7
Insulation Class B
Full Load Efficiency Rating 76.80
Motor Run Capacitor Micro Farid 10.00
Motor Run Capacitor Volts 0
Service Factor Rating 1.00
Motor Rotation CCW Lead End Rev
PSC Code 6105
$449.57
