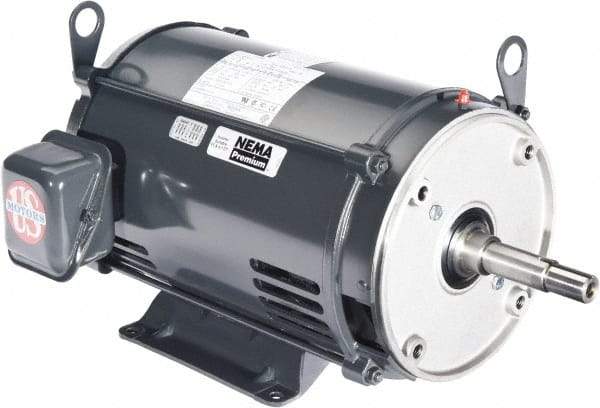

US Motors - 15 hp, ODP Enclosure, No Thermal Protection, 3,490 RPM, 208-230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 215 Frame, Rigid Mount, 1 Speed, Ball Bearings, 41-36/18.1 Full Load Amps, F Class Insulation, CCW Lead End - USA Tool & Supply

US Motors - 15 hp, ODP Enclosure, No Thermal Protection, 3,490 RPM, 208-230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 215 Frame, Rigid Mount, 1 Speed, Ball Bearings, 41-36/18.1 Full Load Amps, F Class Insulation, CCW Lead End


Item #: 53651378
Brand: US Motors
Model #: DJ15E1DM
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Energy Efficient
Type of Enclosure ODP
Horsepower 15
Thermal Protection Rating None
Name Plate RPMs 3490
Voltage 208-230/460
Frequency Hz 60
Frame Size 215
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications Special Application
Full Load Amperage 41-36/18.1
Insulation Class F
Frame Material Steel
Overall Length (Decimal Inch) 19.2500
Full Load Efficiency Rating 89.5
Service Factor Rating 1.15
Motor Rotation CCW Lead End
PSC Code 6105
$1,770.45

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
