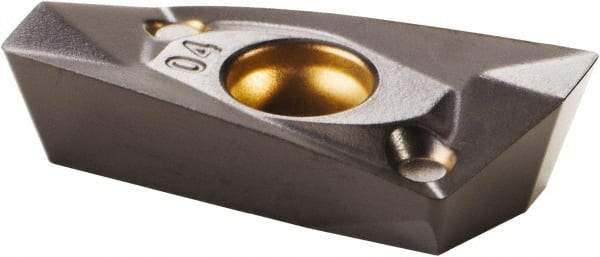

Kennametal - EC1408 Grade KCPM20 Carbide Milling Insert - TiN/MT/TiCN/Al2O3 Finish, 0.1772" Thick, 1/32" Corner Radius
Item #: 53363040
Brand: Kennametal
Model #: 3957214
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1408 |
| Material | Carbide |
| Manufacturer's Grade | KCPM20 |
| Coating | TiN/MT/TiCN/Al2O3 |
| Width (Decimal Inch) | 0.3340 |
| Length (Decimal Inch) | 0.6878 |
| Thickness (Decimal Inch) | 0.1772 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (mm) | 0.79 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Cutting Edge Style | Honed |
| ISO Number | EDCT140408PDERGD |
