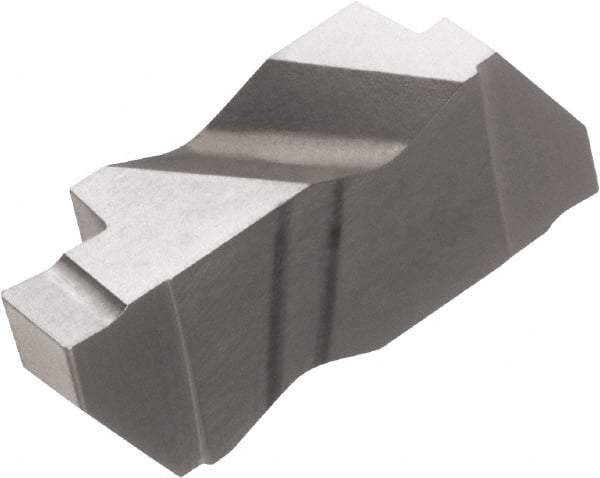

Kyocera - 3094KCGP Grade KW10, 3/32" Cutting Width Carbide Grooving Insert - 0.15" Max Depth of Cut, Right Hand, 0.008" Corner Radius, WC/Co Finish
Item #: 53228193
Brand: Kyocera
Model #: 8849999
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KCGP |
| Insert Size | 3094 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Relief Angle | 3 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Overall Length (Decimal Inch) | 0.8100 |
| Series | KCGP |
| Rake Angle | 5 |
| Manufacturers Catalog Number | KCGP3094R |
| Included Angle | 55 |
| Insert Thickness (Decimal Inch) | 0.1950 |
