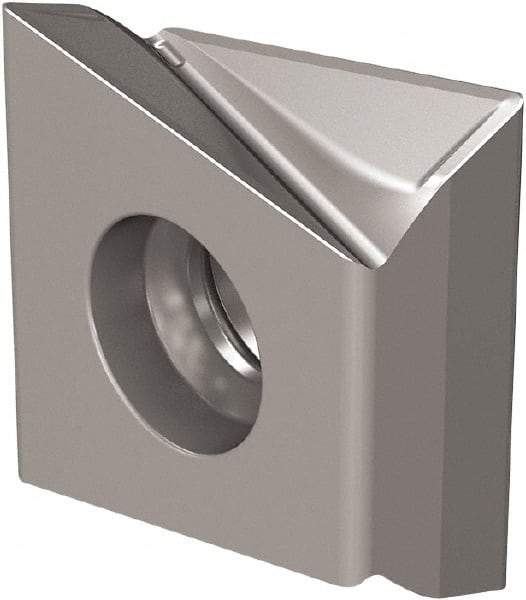

Seco - XNHQ170708 M13 Grade MK2050 Carbide Milling Insert - TiSiN/TiAlN Finish, 0.2953" Thick, 0.8mm Corner Radius
Item #: 53094561
Brand: Seco
Model #: 15456
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNHQ |
| Insert Size | 170708 |
| Material | Carbide |
| Manufacturer's Grade | MK2050 |
| Coating | TiSiN/TiAlN |
| Length (Decimal Inch) | 0.6693 |
| Thickness (Decimal Inch) | 0.2953 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | M13 |
| Manufacturers Catalog Number | XNHQ 170708TN4-M13 |
