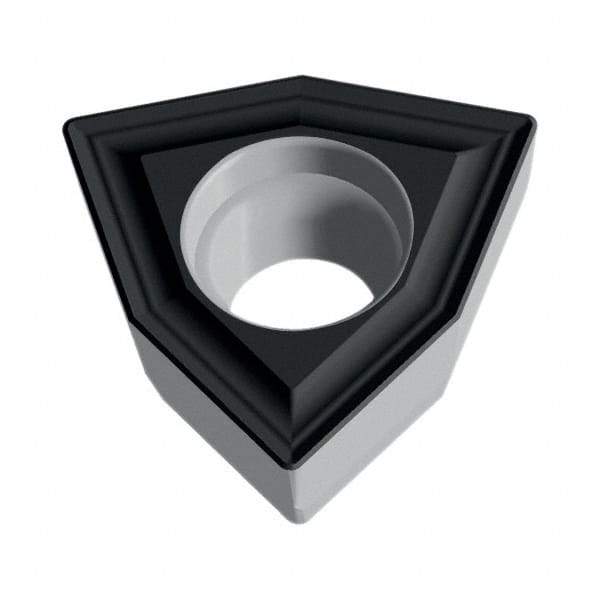

Walter - WOMX06T304 D57 Grade WKP25S Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Trigon, 10mm Inscribed Circle
Item #: 53081584
Brand: Walter
Model #: 6371158
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOMX |
| Insert Size | 06T304 |
| Material | Carbide |
| Material Grade | P25/K25 |
| Manufacturer's Grade | WKP25S |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (mm) | 6.62 |
| Length (Decimal Inch) | 0.2606 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | D57 |
