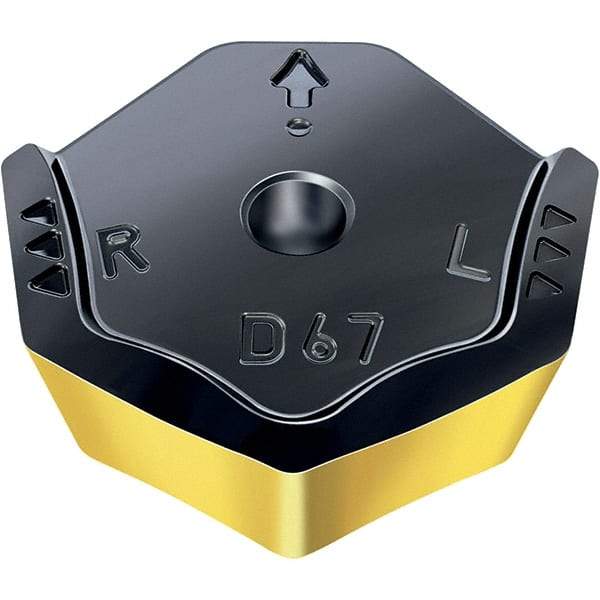

Walter - XNHX0705 D67 Grade WHH15 Carbide Milling Insert - TiAlN Finish, 0.1654" Thick, 14.5mm Inscribed Circle
Item #: 53081295
Brand: Walter
Model #: 6226050
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNHX |
| Insert Size | 0705 |
| Material | Carbide |
| Material Grade | H15/P15/K15 |
| Manufacturer's Grade | WHH15 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 14.50 |
| Inscribed Circle (Decimal Inch) | 0.5709 |
| Thickness (Decimal Inch) | 0.1654 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Heptagon |
| Insert Hand | Neutral |
| Chipbreaker | D67 |
| Manufacturers Catalog Number | XNHX0705ANN-D67 |
