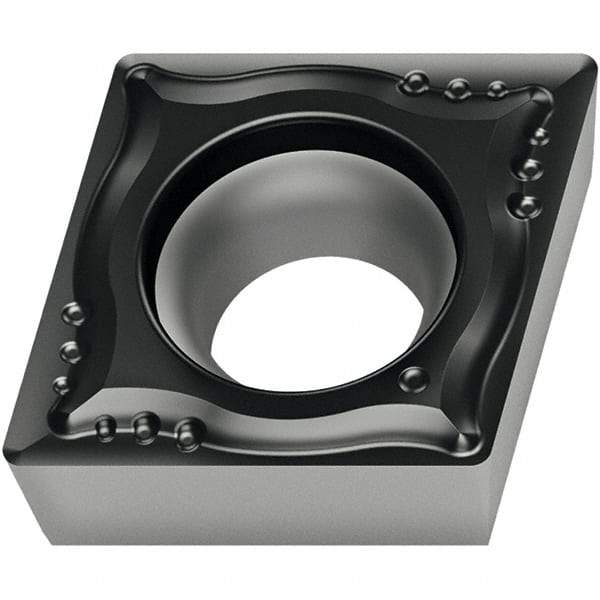

Walter - CPGT1.81.51 MK4 Grade WKK20S Carbide Turning Insert - TiCN/Al2O3/TiCN Finish, 80° Diamond, 7/32" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 53076170
Brand: Walter
Model #: 6363972
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPGT |
| Insert Size | 1.81.51 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WKK20S |
| Coating | TiCN/Al2O3/TiCN |
| Material Grade | K20/P10 |
| Chip Breaker | MK4 |
| ISO Number | CPGT050204-MK4 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CPGT050204-MK4 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | P |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
