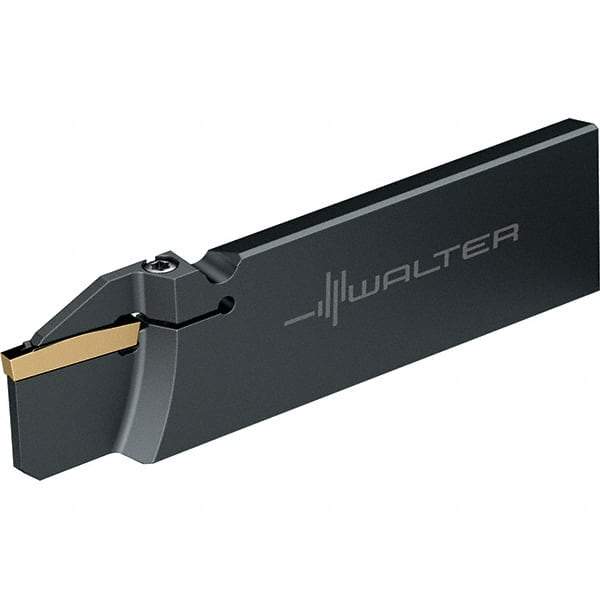

Walter - 1.0236" Blade Height, 4.3307" OAL, Left Hand Cut, Single End Indexable Cut-Off Blade - 16mm Max Depth of Cut, G1041 C Blade
Item #: 53055588
Brand: Walter
Model #: 6090545
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Left Hand |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | G1041 C |
| Insert Style | GX16-0E.. |
| Insert Width (mm) | 1.50 |
| Insert Width (Decimal Inch) | 0.0591 |
| Tool Block/Toolholder Style | SBN |
| Insert Holding Method | Screw |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Cutting Height (mm) | 21.00 |
| Cutting Height (Decimal Inch) | 0.8268 |
| Insert Corner Radius (Decimal Inch) | 0.0059 |
| Complete Insert Compatibility | GX16-0E150N01-CF6; GX16-0E150R/L10-CF6 |
| Complete Tool Block/Toolholder Style Compatibility | SBN12-26K-E; SBN12-26KS-E; SBN16-32-K-E; SBN16-32KS-E; SBN2020-26-K; SBN20-32K-E; SBN20-32KS-E; SBN20-46K-E; SBN2520-32-K; SBN3229-32-K; SBN3229-46-K; SBN4037-46-K |
| Includes | Clamping Screw FS2164; Screwdriver FS1485 |
